Gear Flowmeter for High Pressure High Viscosity and Micro Flow Measurement

High pressure resistance (1.0–40 MPa)
High and low temperature resistance (–40°C to 150°C)
Can measure various viscous media
High accuracy and high repeatability
Pulse output / analog output optional
Wide turndown ratio (up to 1:100)
Wide measuring range
Strong corrosion and contamination resistance (acids and alkalis)

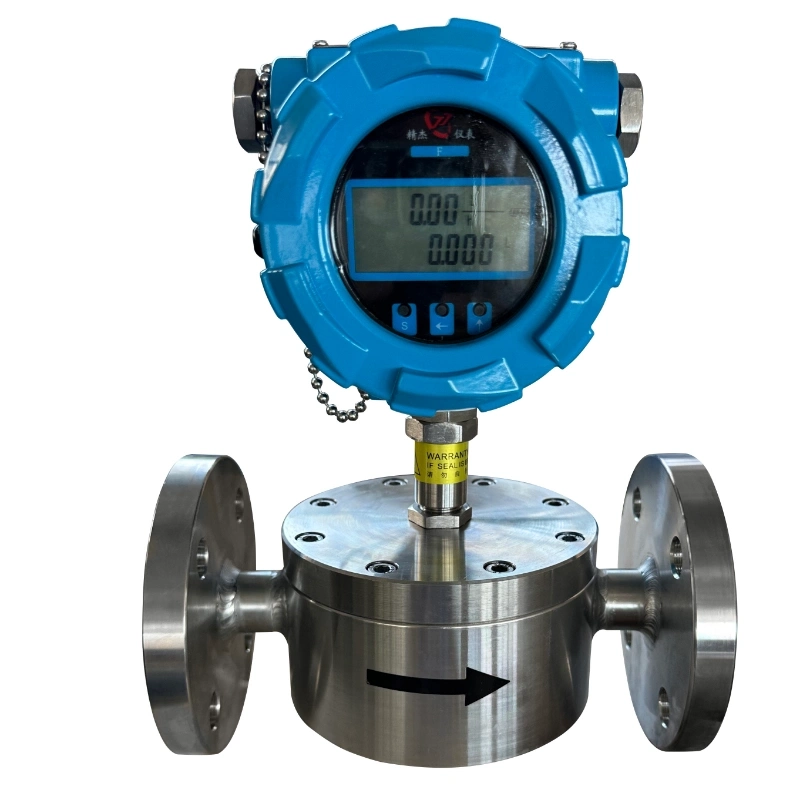

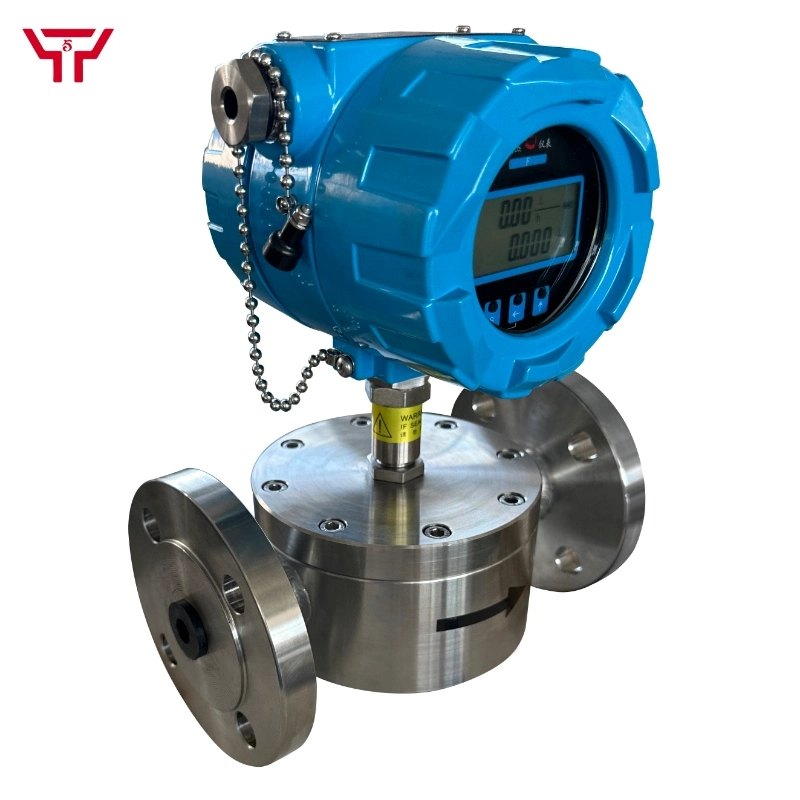

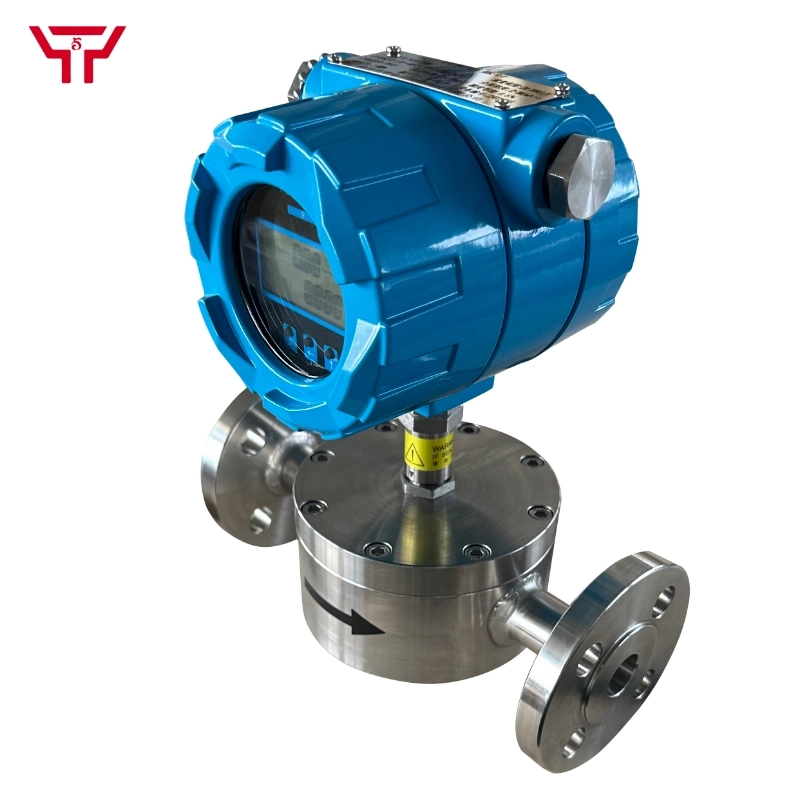

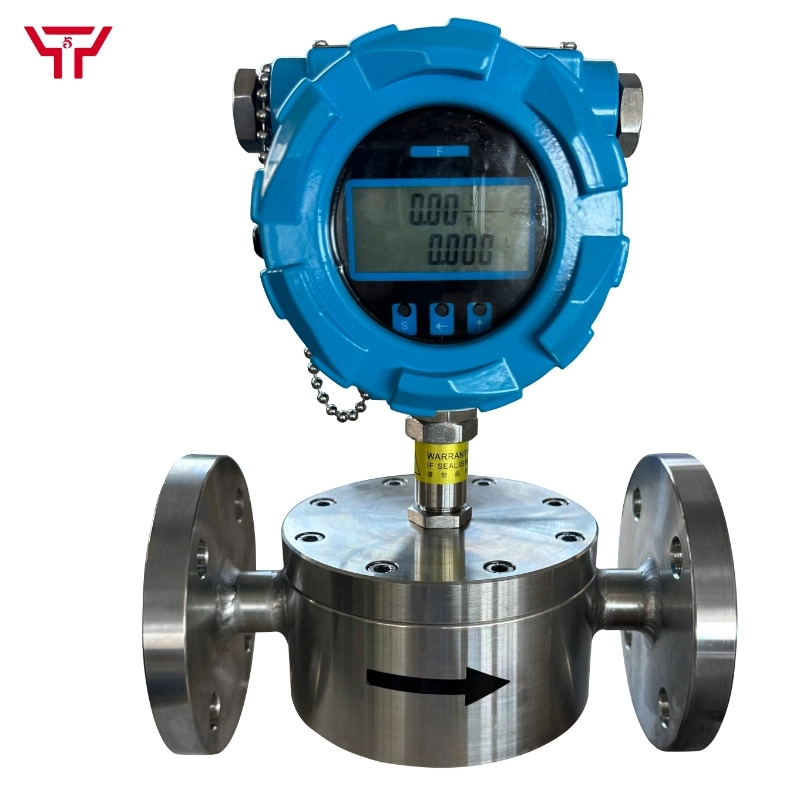

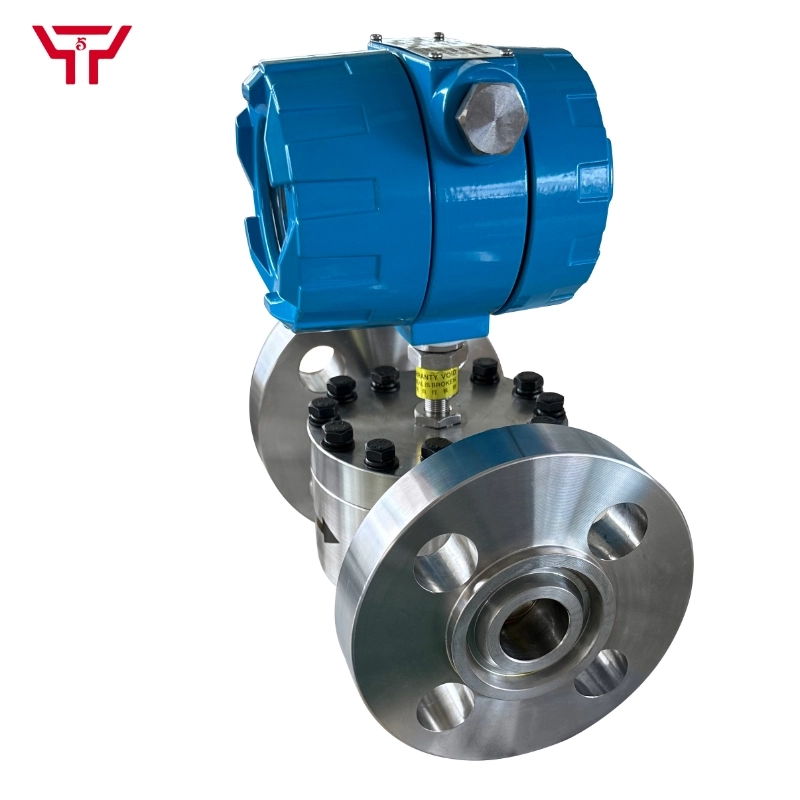

The LW series gear flow meter is equipped with a pulse transmitter and a digital LCD display unit. It provides stable and accurate pulse signal output, and can also directly display instantaneous and cumulative flow rates on site. It offers various remote signal transmission functions. When used with electronic display instruments, it enables centralized remote control of totalization, batching, and instantaneous flow measurement. In addition, it is capable of measuring high-temperature and high-viscosity liquids. Its excellent performance allows it to adapt well to a wide range of complex operating conditions.

Flow range:

Model code	Diameter mm	Standard flow rate (L/h)	Extended flow rate (L/h)	Pressure rating / Max (MPa)	Temperature range / Max	Connection (customizable)
LW-01	DN4	1-10（10-100）	0.1-100	1.6~6.4/Max40	-20-80℃/150℃	G 1/8
LW-02	DN6	5-50（5-200）	3-50	1.6~6.4/Max40	-20-80℃/150℃	G 3/8
LW-04	DN8	25-250	5-250	1.6~6.4/Max40	-20-80℃/150℃	G 3/8
LW-06	DN10	50-500	10-500	1.6~6.4/Max40	-20-80℃/150℃	G 1/2
LW-15	DN15	100-1800	30-3000	1.6~6.4/Max40	-20-80℃/150℃	G 1/2
LW-20	DN20	200-3600	50-5000	1.6~6.4/Max40	-20-80℃/150℃	G 3/4
LW-25	DN25	250-7200	100-10000	1.6~6.4/Max40	-20-80℃/150℃	G 1
LW-32/40	DN32/40	1500-15000	1500-15000	1.6~6.4/Max40	-20-80℃/150℃	G1 1/2
LW-50	DN50	2000-20000	2000-25000	1.6~6.4/Max40	-20-80℃/150℃	G2
LW-65	DN65	4000-40000	4000-40000	1.6~6.4/Max40	-20-80℃/150℃	G2 1/2
