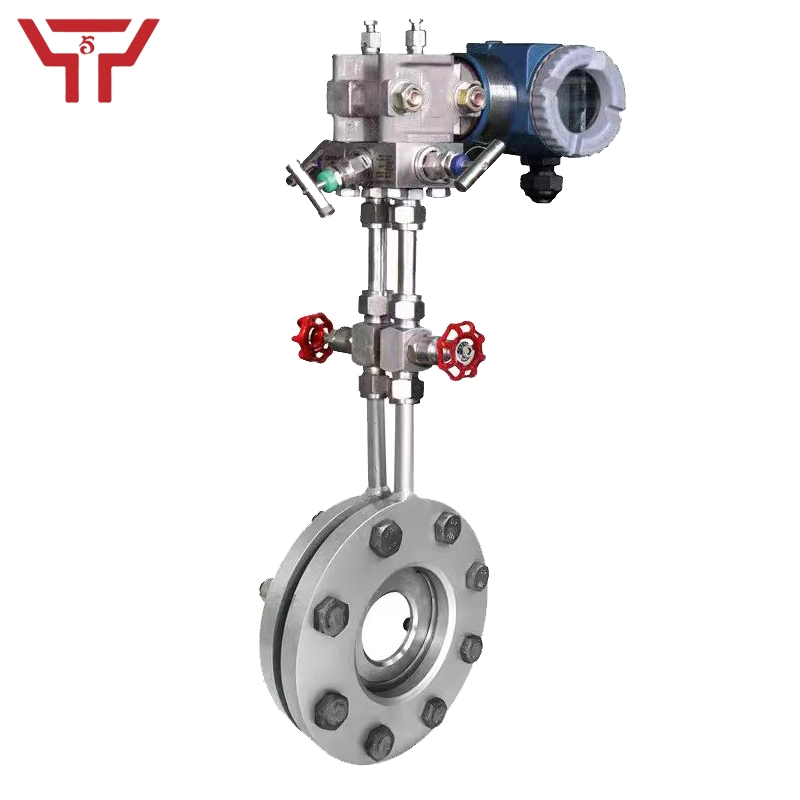

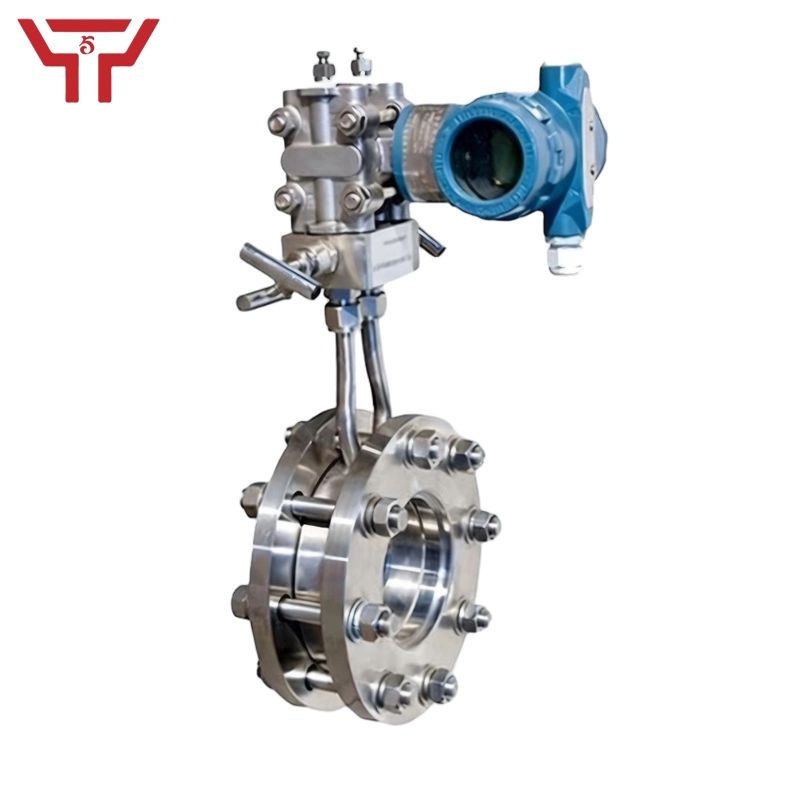

orifice plate flowmeter

Product Features

• The throttling device of the orifice flowmeter has a structure that is easy to replicate. It is simple, robust, with stable and reliable performance, and a long service life.
• Orifice metering adopts standardized design and processing.
• The orifice flowmeter has a wide range of applications. It can measure all single-phase flows and can also be used for some mixed-phase flows.
• Standard throttling devices can be put into use without actual flow calibration.
• The integrated orifice flowmeter is easier to install, requires no impulse lines, and can be directly connected to a differential pressure transmitter and a pressure transmitter.

Features of Smart Orifice Flowmeter

• Uses imported single-crystal silicon smart differential pressure sensor.
• Complete self-diagnostic function.
• The range of the smart orifice flowmeter can be programmed and adjusted.
• The smart orifice flowmeter can simultaneously display cumulative flow, instantaneous flow, pressure, and temperature.
• In addition to online, dynamic full compensation, the smart orifice flowmeter also features self-diagnosis and self-setting range.
• Equipped with multiple communication interfaces.
• High stability.
• Wide turndown ratio, greater than 10:1.

Technical Specifications of Smart Orifice Flowmeter

• Accuracy: ±0.075%
• Stability: better than 0.1%
• Static pressure: 40 MPa
• No recalibration required for 5 years of continuous operation.
• Negligible influence from temperature and static pressure.
• Pressure resistant.
