Excellent Performance of Mass Flow Meters in Petrochemical Industry: High Accuracy, Direct Mass Measurement, and Good Temperature/Pressure Resistance

Nominal diameter	DN3 – DN200
Measurement accuracy	Better than 0.1%
Turndown ratio	1:15 – 1:20
Operating pressure	0 – 25 MPa
Measurement temperature	-200°C – 350°C
Ambient temperature	-50°C – 60°C
Material	316L / 304 / Hastelloy
Output signal	Pulse, 4-20mA, RS485
Power supply	24 VDC, 220 VAC
Installation type	Flange, threaded, clamp
Converter type	Remote / integral, wall-mounted
Display data	Instantaneous flow, total flow, density, concentration
Explosion-proof rating	Ex db [ia] IIC T6 Gb
Protection rating	IP67

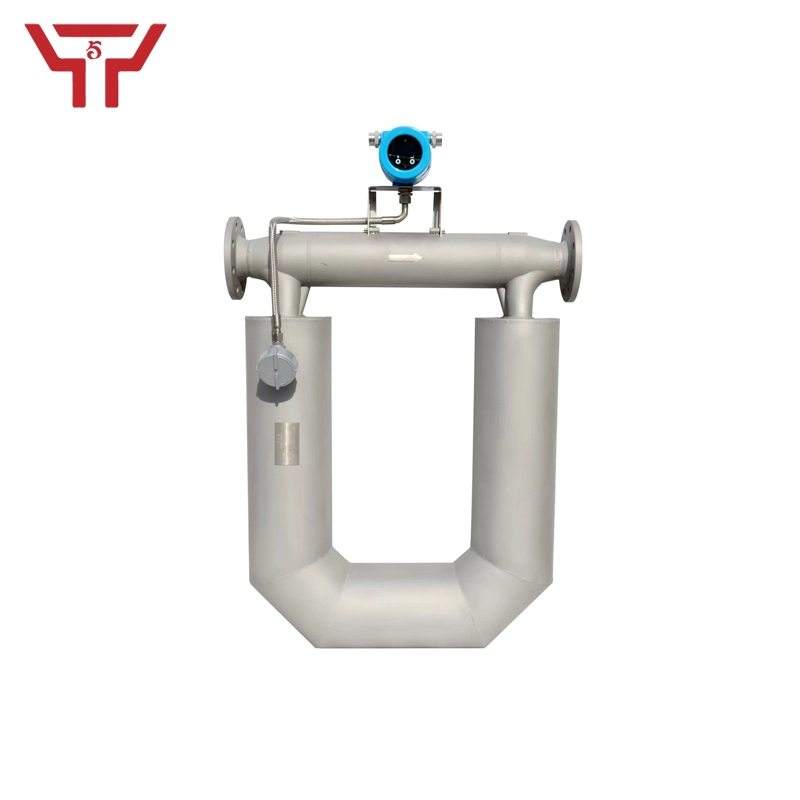

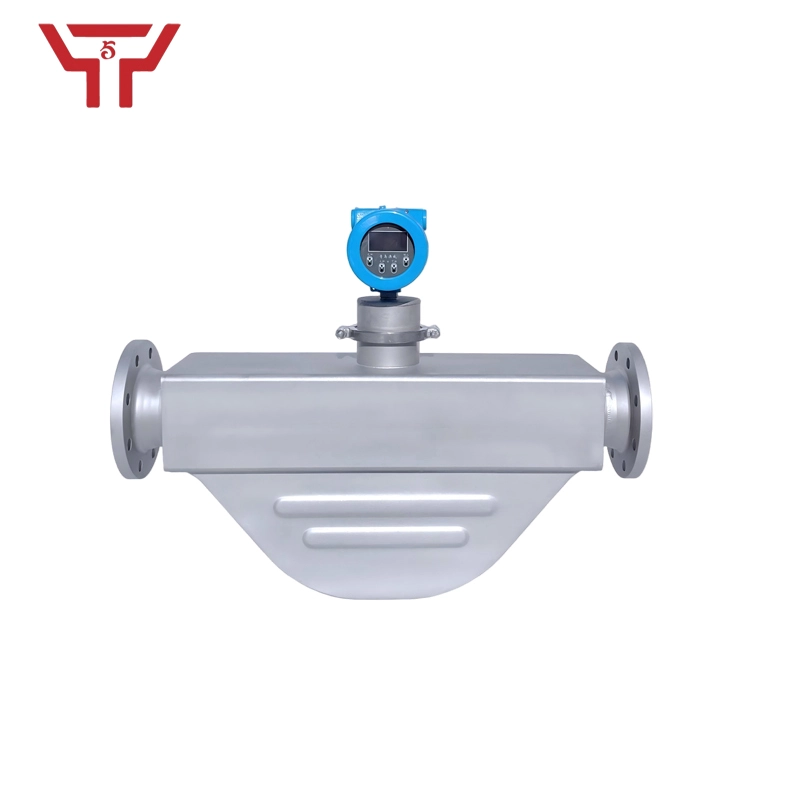

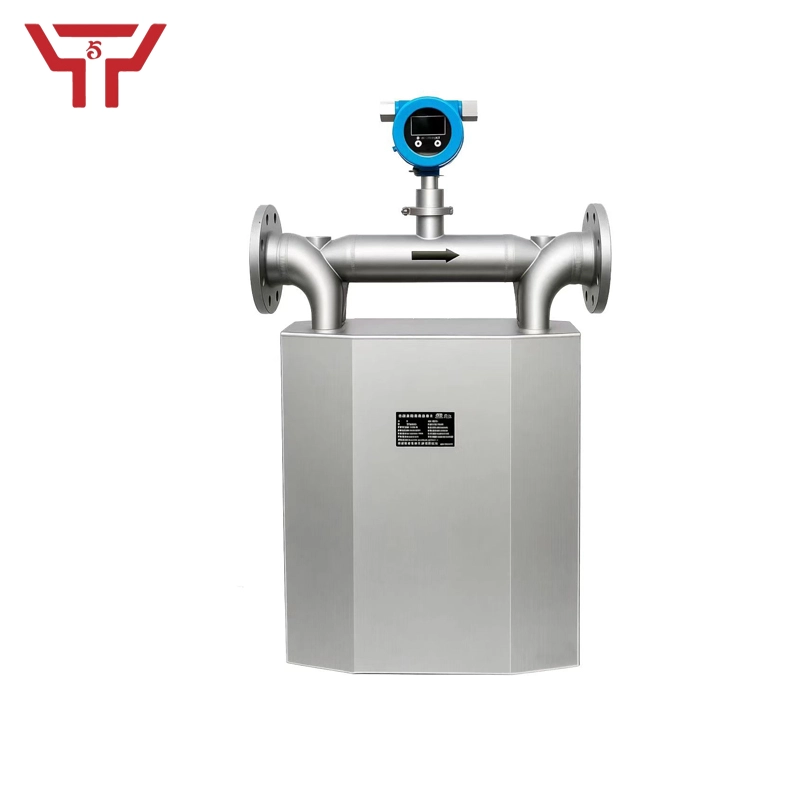

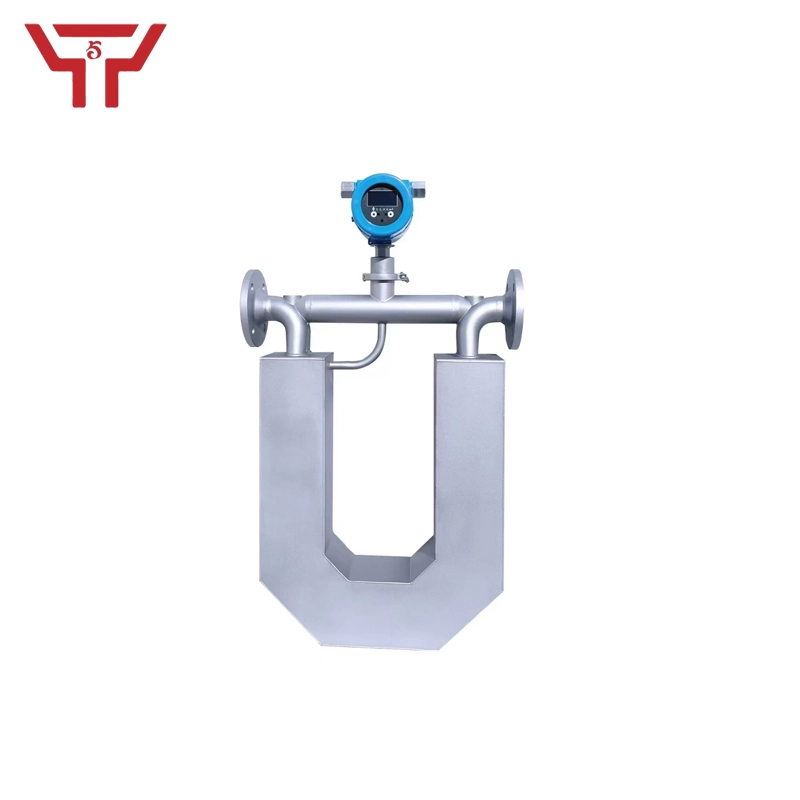

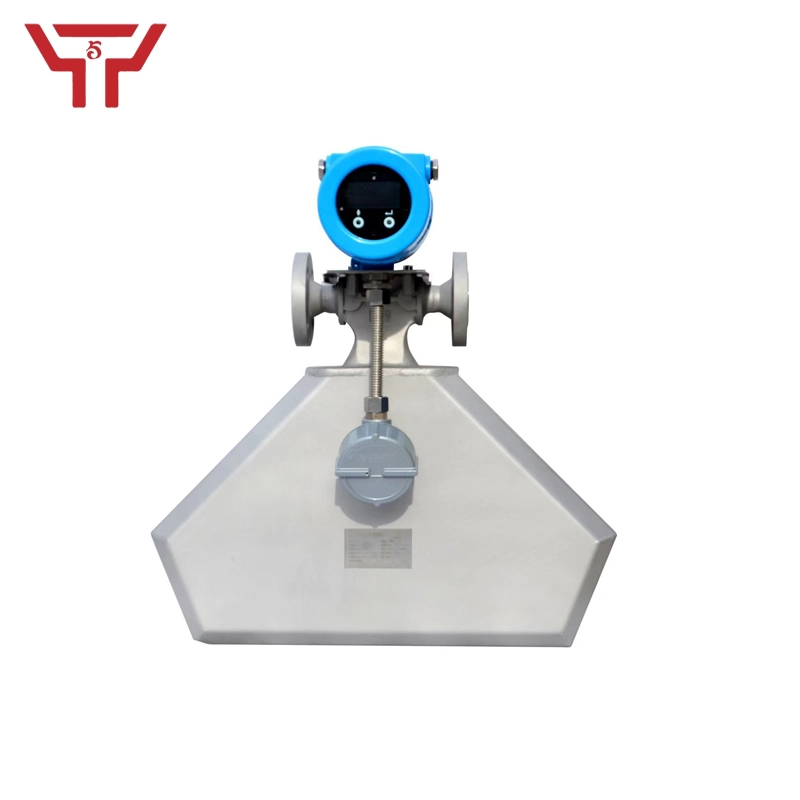

Main features of Coriolis mass flowmeter

Coriolis mass flowmeters are leading precise flow and density measurement solutions, providing the most accurate and repeatable mass measurement for liquids or slurries. The U Series Coriolis mass flowmeter is an advanced, high-precision mass flow measuring instrument featuring flexible configuration, powerful functionality, and a high cost-performance ratio. It is a commonly used structure among the new generation of mass flowmeters. It has low requirements on fluid conditions and can exhibit excellent performance even in harsh working environments.

Application Fields

The characteristics of the mass flowmeter determine its wide application in the following fields:

Metering of fluid energy, fluid raw materials, and products – e.g., metering of petroleum, chemical raw materials and products during loading (onto trucks/ships) and unloading (from trucks/ships), as well as packaging metering.

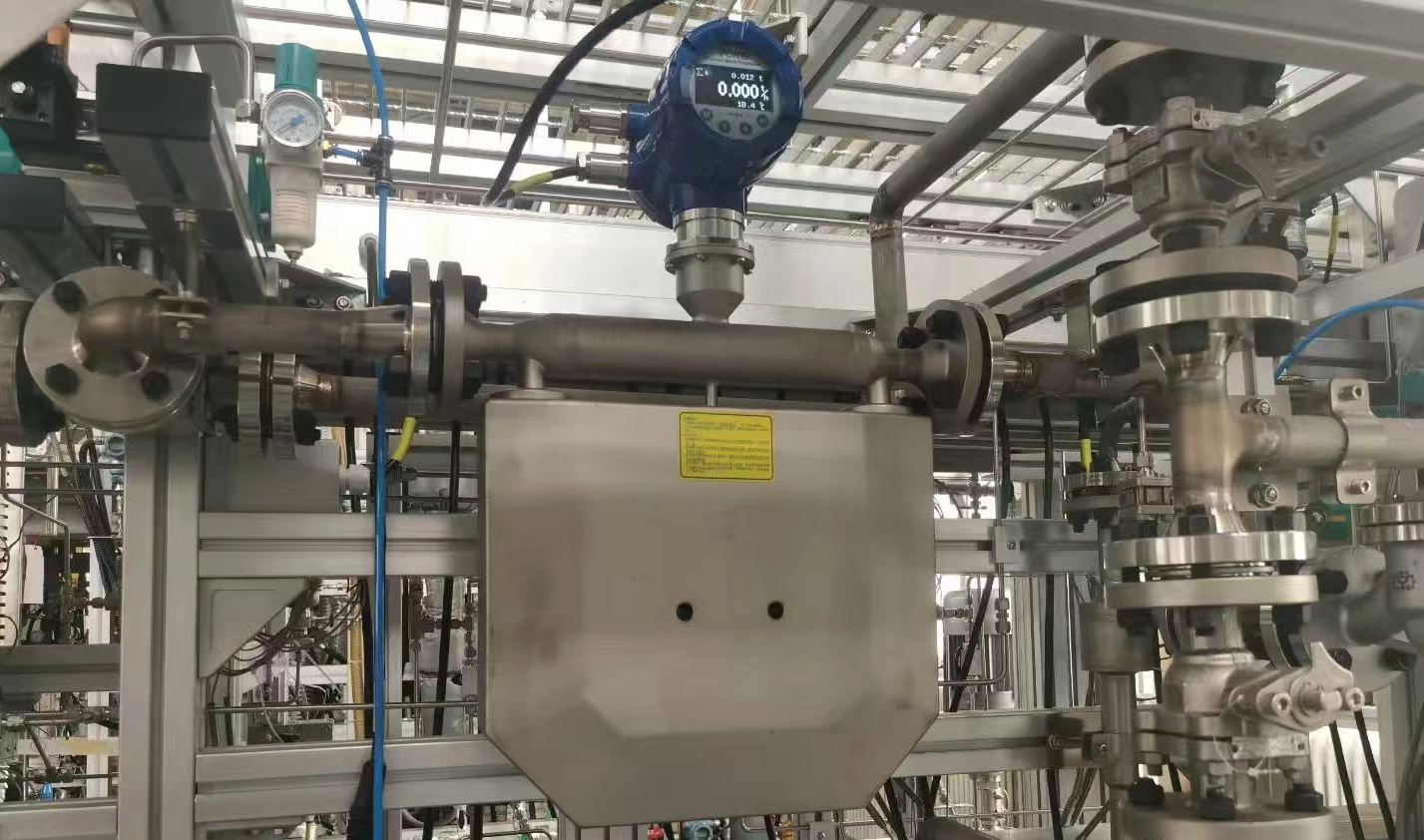

Precise metering and control of materials in production processes of the petroleum, chemical, food, and pharmaceutical industries.
Online metering of high‑viscosity materials – e.g., asphalt, heavy oil, and grease.
Metering of materials containing suspended solids and solid particles – e.g., cement slurry and lime slurry.
Insulated metering of easily solidifiable materials – e.g., asphalt, allowing metering while maintaining a heated state.
Accurate metering of medium‑ and high‑pressure gases – e.g., CNG (compressed natural gas) and petroleum natural gas.
Micro‑flow measurement – e.g., in fine chemical and pharmaceutical industries.
Online measurement of medium density, and thereby deriving the concentration of solutes in a solution – e.g., measuring lime concentration in lime slurry.
Measurement of cryogenic media – e.g., liquid nitrogen, liquid oxygen, and other liquefied gases.
Flow measurement of high‑temperature media – e.g., high‑temperature oil (up to 200–300°C).
Flow measurement of high‑pressure media – e.g., cement slurry flow in oil well cementing (up to several tens of MPa), etc.
