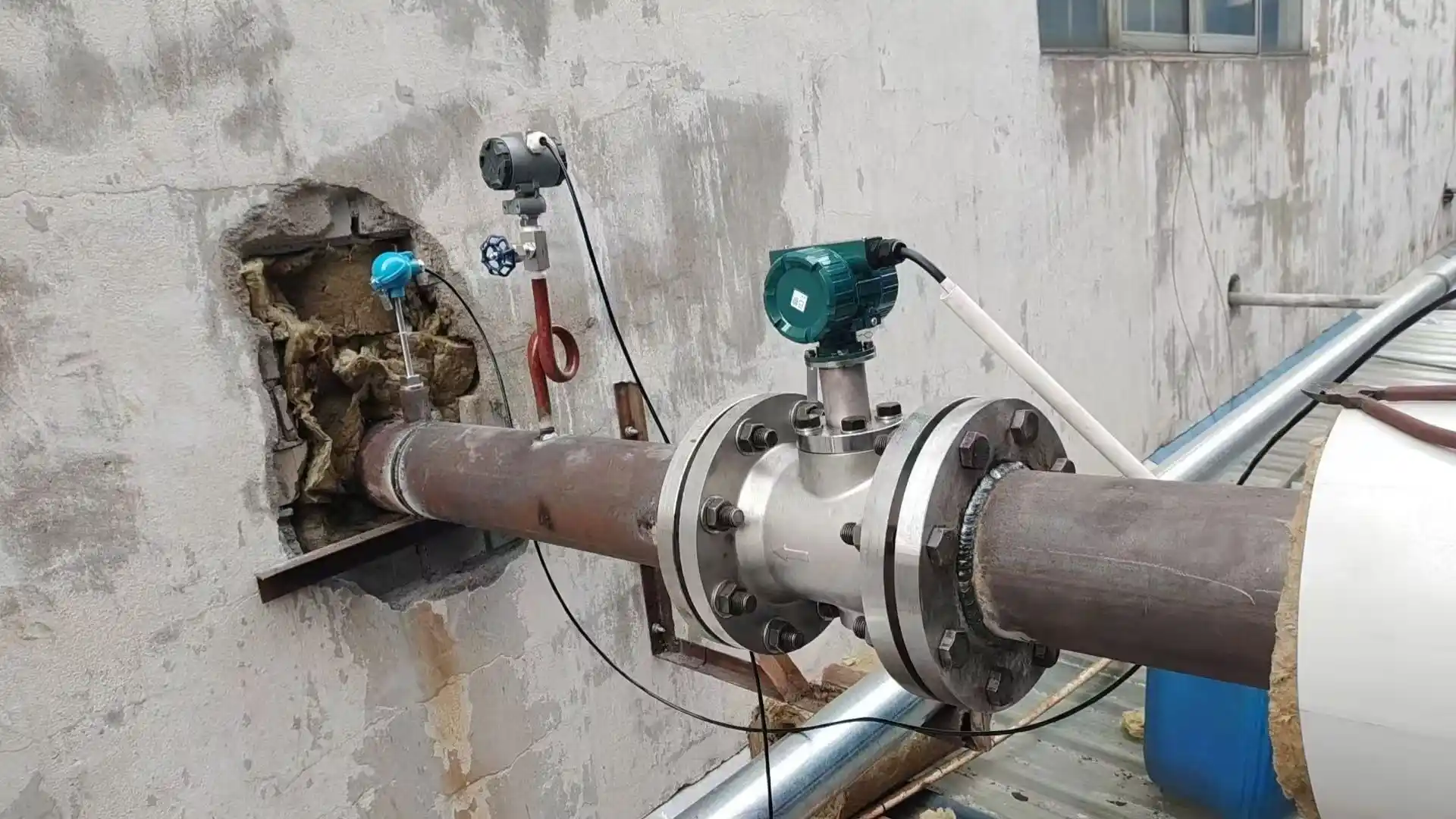

Application of Vortex Flowmeter in Steam Measurement

Nominal diameter: ≥DN15, customizable
Pressure rating: 1.6MPa (for >1.6MPa, order by agreement)
Measured media: liquid, gas, steam
Medium temperature: -20~250℃; 250~350℃
Body material: SS304; SS316L (order by agreement)
Allowable vibration acceleration: 0.2g
Accuracy: Class 1.0; Class 1.5; Class 2.5
Turndown ratio: 1:6; 1:10; 1:20
Power supply: 3.6V battery; DC24V
Output signals: pulse, 4–20mA, RS485, HART protocol
Explosion-proof marking: Exd ll CT6 Gb
Ingress protection: IP65; IP68
Ambient conditions: temperature: -20~55°C; relative humidity: 5–95%; atmospheric pressure: 86–106KPa
Display: no display; LCD display
Electrical connection: M20×1.5; NPT1/2

Inquire Now WhatsApp

Detailed Description

Working principle

The vortex flowmeter operates on the Kármán vortex street principle and is used to measure the flow rate of steam, gas, and low‑viscosity liquids. When fluid flows past a vortex shedder placed perpendicular to the flow direction of the measured medium, two alternating rows of vortices are generated on the two downstream sides of the shedder; this is called the Kármán vortex street.

Flow Range

Instrument Diameter (mm)	Liquid Flow Range (m³/h)	Gas Flow Range (m³/h)
DN15	1~6	3~12
DN20	1~10	5~30
DN25	1.6~16	8~70
DN32	2.2~20	15~150
DN40	2.5~25	20~200
DN50	3.5~35	35~350
DN65	6.5~65	50~500
DN80	10~100	70~700
DN100	15~150	110~1100
DN125	27~275	150~1500
DN150	40~400	250~2200
DN200	80~800	600~4000
DN250	120~1200	960~5500
DN300	180~1800	1500~11500
